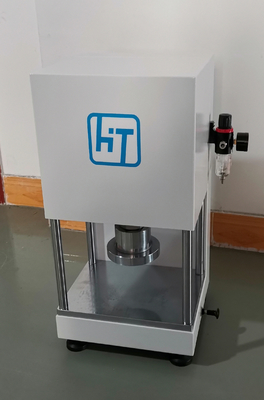

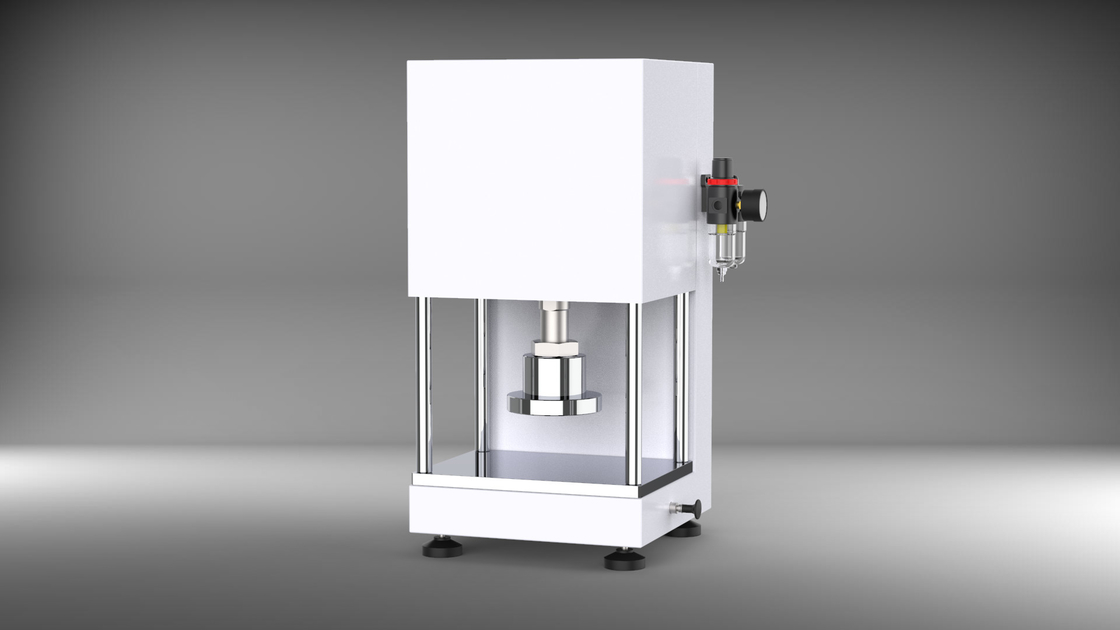

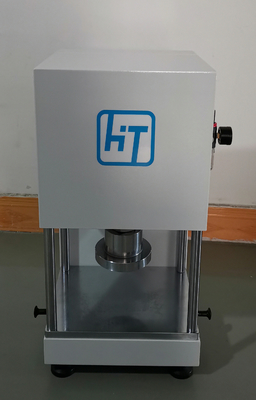

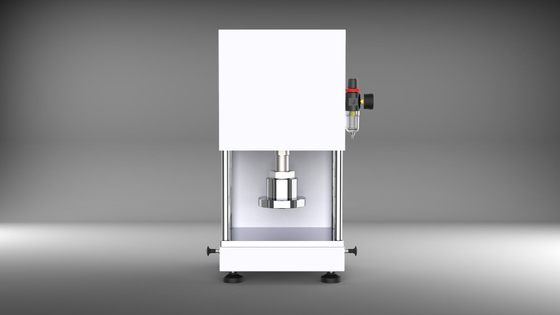

Introduction:
The pneumatic slicer is mainly used for rubber cutting standard test pieces, and it is necessary to match the standard knife die.and connect the gas source above 4KG.
Specification:
1. Load: 1000KG.
2. Platen diameter: Ф120 mm.
3. Base plate: 230X250mm.
4. Effective height: 100mm.
5. Machine size: 280X330X430mm.
6. Machine weight: about 20 kg.
Operation:
1. Place the machine on a flat surface, adjust the four feet to make it stable.and put the cutting glue.
2. Open the ventilation source, adjust the rear oil-water separator valve switch, adjust the barometer to at least 4KG.
3. Put the PU glue, put the film on the glue, then put the knife mold, then hold the red button switch at the same time with both hands (for safety, both hands must be pressed at the same time), press the plate down on the knife mold, stay for a few seconds, so that the rubber is fully cut off, and at the same time let go, take out the test piece.
4. When you are finished, please turn off the air supply.
